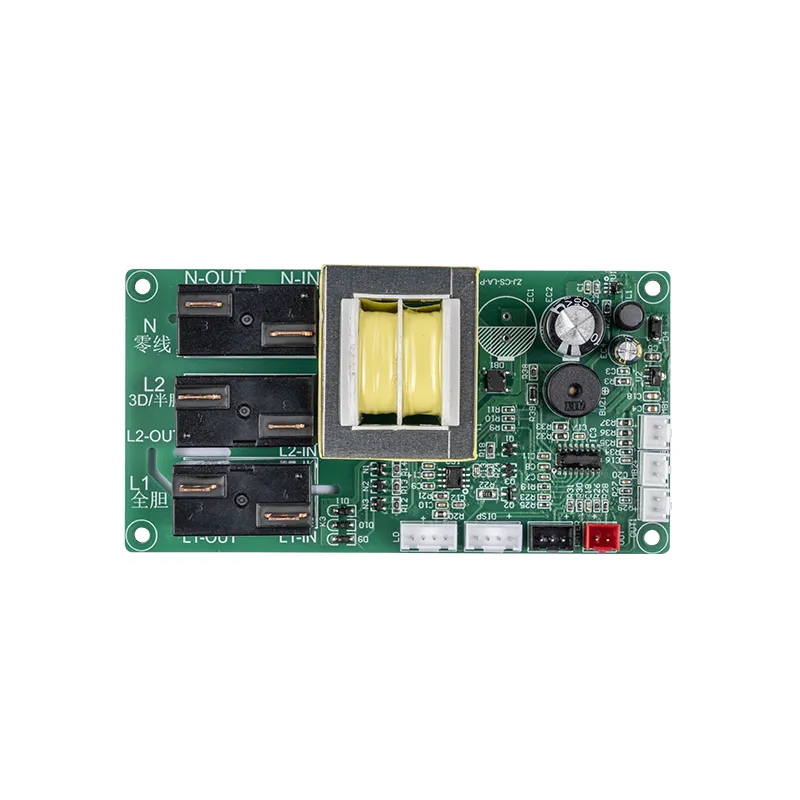

Storage Water Heater Control Board

1. Thermostat modification plan (built-in/external control)

    Dual-mode control is possible, with built-in NTC temperature sensor to monitor the water temperature of the inner tank, and PID algorithm to dynamically adjust the heating power. External resistance sensor can monitor the pipe or ambient temperature to achieve cross-regional linkage control. It can also support the access of third-party thermostats, and users can choose a more cost-effective control plan to reduce the cost of equipment replacement.

2. Capacity expansion mode

    Adopting dual-tank fast heating technology, the heating mode is dynamically switched through the connecting pipe temperature sensor. In the conventional mode, single-tube heating meets daily water needs; in the bathing mode, two-tube parallel connection increases the heating speed to meet continuous water needs. Combined with pressure sensor and water level electrode, preheating is started when the water level in the inner tank drops to avoid cold water mixing in the middle of bathing.

3. Touch electronic control device

    The capacitive touch panel can directly switch the interface with gesture sliding, and supports wet hand operation through waterproof vapor design and anti-mistouch algorithm. The "on/off" and "mode switching" physical buttons are retained to meet the operating habits of elderly users. A voice module can be installed for control and accurate recognition of instructions. Supports multiple language switching, suitable for international families. The graphical interface can intuitively display water temperature curves and energy consumption statistics.

4. "Self-learning" mode

     Record daily water use time, temperature, and flow, and establish a user habit model. After the system runs for a week, it can predict the user's water demand, automatically match the best heating method according to the water use habits, adjust the heating power, and reduce ineffective heating.

Through the detection and analysis of water use data, changes in user water use habits (such as reduced water use by the elderly) can be discovered, and potential health problems can be warned in time. When abnormal fluctuations in water use are detected, the APP notification is automatically pushed to prompt to check for water leaks.

5. "Smart control" mode

   Combined with real-time electricity price data (need to be connected to the grid interface), outdoor temperature, and water tank insulation performance, the optimal heating temperature is dynamically calculated (such as 45℃ in summer and 55℃ in winter). Full power heating is performed during valley power periods (such as 23:00-7:00), and PID constant temperature control is switched to peak power periods. Compared with manual adjustment, it saves electricity bills, and users in peak and valley electricity price areas effectively reduce electricity bill expenses.

   Dynamic temperature control prevents the water temperature from being in the scaling range for a long time, ensuring the quality of hot water and extending the life of the heating tube. It can also be linked with smart washing machines and dishwashers to automatically match the optimal water temperature and improve the overall home energy efficiency.

6. Weekly Programming and Holiday Mode

   Supports multiple independent time periods per day, and each time period can set the target temperature (35-75℃), heating power (30%-100%) and cycle frequency. You can set a delayed start. When the user is more than 5 kilometers away from home through the mobile phone GPS positioning, the heating will be automatically delayed to start; remote wake-up 30 minutes before returning home. You can also set a single temporary task (such as "heating to 60℃ from 18:00 to 20:00"), and automatically resume the original plan when it expires.

   Holiday mode saves standby energy consumption compared to normal mode, while ensuring the safety of the equipment and preventing pipes from freezing and cracking after returning home.

1. LED digital tube display, showing real-time temperature

Water temperature management: users can instantly check the current water tank temperature, understand the water temperature status in advance, avoid scalding due to high water temperature or discomfort due to low water temperature, especially suitable for families with elderly and children, to improve water comfort.

Energy-saving reminder: Display heating status (such as "heating" or "keeping warm"), remind users to use it reasonably and reduce ineffective energy consumption.

Fault prediction: abnormal temperature flashes, indicating potential problems (such as thermostat failure).

2. Tuya Wi-Fi mobile phone control (power on/off function, adjust water tank temperature, monitor product working status)

Remote control: turn off the device through the APP after leaving home to avoid energy waste caused by forgetting to turn off the power. You can also turn on the heating in advance before leaving get off work, so that you can use hot water when you get home without waiting for preheating, saving time.

Personalized temperature adjustment: the water tank temperature can be adjusted remotely according to the family's water demand or actual situation to meet the water demand in different scenarios, such as raising the temperature in winter and lowering the temperature in summer.

Real-time monitoring: check the working status of the water heater at any time, including whether it is heating, the remaining hot water volume and other information, and deal with it in time if an abnormality is found. At the same time, it can also count energy consumption data to help customers understand electricity usage, optimize usage habits, and reduce electricity bills.

3. Fault prompt (sensor damage or dry burning fault)

Quick response: When the sensor is damaged or a dry burning fault occurs, the device immediately issues a prompt, and the screen displays the fault code (such as E1: overtemperature, E2: leakage) to avoid further damage to the equipment due to undetected faults, or even fire and other serious safety accidents.

Reduce losses: Early warning of damage to key components (such as dry burning of the heating element) to avoid related failures (such as circuit board burnout). Quickly locate the type of fault to help after-sales describe the problem more accurately and reduce the time for maintenance personnel to troubleshoot the fault, thereby reducing maintenance costs and waiting time for maintenance, so that the equipment can be restored to normal use as soon as possible.

4. Electronic magnesium rod (prevent scale formation and improve heating efficiency)

Extend equipment life: Electronic magnesium rods prevent scale from forming on the surface of water tanks and heating bodies by absorbing anions in water, reduce scale corrosion on equipment, extend the service life of water heaters, and reduce the frequency and cost of equipment replacement for customers.

Improve heating efficiency: Without the interference of scale, the heating body can convert electrical energy into thermal energy more efficiently, shorten heating time, and reduce heating energy consumption.

Ensure water health: Reduce scale formation, avoid harmful substances in scale from mixing into hot water, and provide cleaner bathing water, which is especially beneficial to the health of people with sensitive skin and infants.

5. APP appointment heating

Flexible water arrangement: Users can make an appointment for heating time on the APP in advance according to their own work and rest time, such as setting the heating to start at 6 o'clock in the morning, to meet the needs of washing and bathing after getting up, avoid waiting for preheating, and increase the degree of freedom of use.

Peak energy saving and fee reduction: Combined with the peak and valley electricity price policy, make an appointment for heating during the valley electricity period, use low-priced electricity for hot water storage, and reduce electricity costs.

Efficient use of energy: avoid unnecessary continuous heating, reduce energy waste, and comply with environmental protection concepts.

6. Leakage protection

Life safety: when leakage is detected, the leakage protection device instantly cuts off the power supply to avoid the risk of electric shock.

Equipment protection: prevent leakage from causing damage to circuit boards and sensors, reduce maintenance frequency and replacement costs.

Standard compliance: comply with IEC 60335 electrical safety standards to reduce legal disputes caused by electric shock accidents.

7. Automatic power off and water and electricity isolation in the bathtub (users need to install a water flow switch or flow meter)

Double safety protection: When the flow meter detects that the bathtub is full of water (such as continuous water flow for 5 minutes), it will automatically cut off the power and stop the water to avoid overflow and leakage. Even if leakage occurs, it can ensure that the user does not come into contact with live parts, effectively avoiding electric shock accidents. The water and electricity isolation design (such as IPX4 waterproof level) will not cause a short circuit even if there is internal leakage, which is suitable for the humid environment of the bathroom.

Product reliability: It reflects the professionalism and reliability of the product in safety design, enhances users' trust in the product, and also helps to improve brand reputation and market competitiveness.

8. Knob to adjust the water tank temperature

User-friendly operation: The knob adjustment method is simple and intuitive. You only need to gently turn the knob to adjust the temperature, which reduces the difficulty of operation, conveniently and quickly meets different temperature requirements, and is suitable for elderly users and users who are not good at smart devices, reducing the threshold for use.

Quick setting: There is no need to enter the multi-layer menu setting. The knob can be quickly adjusted to the required temperature, saving time and improving usage efficiency.

Fault tolerance: The mechanical knob can still be manually adjusted when the system crashes, ensuring the availability of basic functions.

Dual adjustment guarantee: Complementary to the mobile phone APP adjustment, customers can either remotely fine-tune through the mobile phone or quickly adjust through the knob next to the device to meet the temperature setting requirements in different scenarios and increase the flexibility of use.

9. Multiple modes optional (ECO mode / Sterilization mode)

ECO mode - energy saving and cost reduction: In ECO mode, the device optimizes the heating strategy through intelligent algorithms, automatically adjusts the heating power and time according to water use habits and ambient temperature, and minimizes energy consumption while meeting basic water needs, helping customers save electricity bills, in line with the green and energy-saving life concept.

Sterilization mode - health protection: After turning on the sterilization mode, the device sterilizes the water in the water tank at high temperature, effectively killing bacteria, viruses and other microorganisms in the water. It is especially suitable for places such as infants, the elderly or hospitals with high water quality requirements, making bathing and washing water safer and more reliable.
