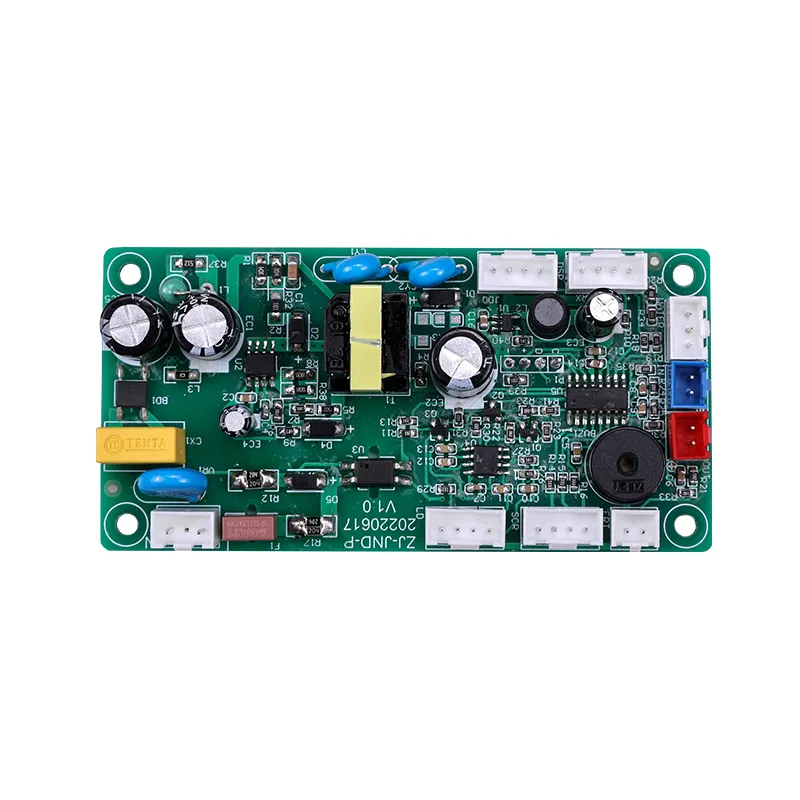

Instant Water Heater Control Board

Extended Solution Areas for Temperature Control System

1. Enhanced Knob Control Solution

· Ergonomic & Multi-Functional Design: Redesign knobs for intuitive use (e.g., push-pull for on/off, rotation for temperature).

· Integrated Digital Display: Combine analog knobs with a small screen to show real-time temperature or power levels.

· Tactile Feedback: Add haptic responses for precise adjustments (e.g., "clicks" for incremental changes).

· Customizable Resistance: Allow users to adjust knob stiffness for safety or preference.

2. Simplified Indicator Light Display

· Color-Coded Status: Red (heating), Green (ready), Blue (standby), Yellow (error).

· Dynamic Modes: Blinking for alerts (e.g., overheating), pulsing for active modes.

· Touch-Activated Controls: Integrate capacitive touch with indicator lights for minimalist interaction.

· Adaptive Brightness: Auto-adjust LED intensity based on ambient light.

· Energy-Saving Mode: Dim lights during inactivity or low-power states.

3. Adaptive Gear Control Scheme

· Preset Gear Modes: Low (40°C), Medium (60°C), High (100°C) for common use cases.

· Customizable Gears: Let users define temperature/performance settings per gear via app.

· Automatic Gear Switching: AI-driven adjustments based on usage patterns (e.g., high gear for rapid heating).

· Safety Lock: Restrict access to high-temperature gears without a passcode.

4. Heating Element-Specific Temperature Customization

Different heaters have many differences in heating efficiency, performance, and temperature. Therefore, in terms of constant temperature regulation, we can combine some sensors to achieve fast and stable output in temperature control and regulation of water heaters, which requires some experience accumulation and technical mastery. We have provided a variety of electronic control solutions for instant water heaters with various types of heaters, such as cast aluminum heaters, steel cup heaters, bare wire heaters, etc., and have received good feedback.

5. Smart Connectivity (WiFi/OTA)

· Remote Control: Adjust temperature, gears, or schedules via mobile app.

· OTA Firmware Updates: Deploy performance enhancements or new material profiles remotely.

1. Meet EU energy efficiency standards (standby power consumption <1W)

Specific value:

• Energy saving and consumption reduction: Standby power consumption less than 1W significantly reduces users' long-term electricity costs, especially suitable for high-price areas in Europe, saving tens of euros in electricity bills each year.

• Environmental compliance: Comply with EU ErP directive and other regulations, avoid market access barriers, and support green energy transformation goals.

• Technical competitiveness: Adopt low-power chips, intelligent sleep algorithms and efficient power management modules to reflect the company's technical research and development strength.

Application scenarios:

• Home users: Reduce "invisible power consumption" in standby mode and enhance the environmental image of products.

• Commercial scenarios (hotels, gyms): Save energy costs under large-scale equipment clusters.

2. Assist in passing EMC testing (electromagnetic compatibility)

Specific value:

• Reliability guarantee: Ensure stable operation of equipment in complex electromagnetic environments (such as no interference when using microwave ovens and WiFi at the same time) to reduce failure rates.

• Global market access: Comply with EN 55014, IEC 61000 and other standards, and support export to high-demand markets such as the EU and North America.

• Brand trust: Avoid safety hazards caused by electromagnetic interference and enhance user trust in product quality.

3. Wide voltage power supply (AC 90V~260V)

Specific value:

• Global applicability: Compatible with unstable voltage in underdeveloped areas (such as some Asian and African countries) and standard power grids in developed countries, without the need for additional voltage stabilizers.

• Anti-interference ability: Built-in wide voltage adaptive circuit to deal with abnormal situations such as lightning strikes and power grid fluctuations, extending the life of the equipment.

• Installation flexibility: Suitable for old buildings or temporary power supply scenarios (such as construction sites and RVs).

4. High constant temperature accuracy (±0.5°C, 10 seconds stable)

Specific value:

• Ultimate user experience: There is no large fluctuation in water temperature when bathing and washing dishes, avoiding the pain point of "hot and cold", especially suitable for mothers and babies and the elderly.

• Technological breakthrough: Using PID algorithm + high-precision NTC sensor to compensate for water flow and voltage changes in real time (such as multiple taps using water at the same time).

• Energy saving and efficiency improvement: quickly reach the target temperature, reduce preheating waiting time and energy waste.

5. Compatible with single-phase/three-phase 400V power supply and multiple connection methods

Specific value:

• Commercial scene adaptation: support high-power three-phase motors (such as hotel central hot water system) to meet high flow requirements.

• Installation convenience: support Delta (triangle) and Y-type wiring, adapt to different national power grid architectures (such as European three-phase 400V standard).

• Low maintenance cost: modular design facilitates circuit switching and reduces the complexity of after-sales maintenance.

6. Compatible with solar energy and heat pump systems

Specific value:

• Green energy integration: directly connect to solar panels or heat pump water supply and heating systems, reduce dependence on traditional power grids, and comply with EU renewable energy promotion policies (such as REPowerEU plan).

• Hybrid energy management: intelligent switching of power supply priorities (such as prioritizing solar energy during the day) to reduce operating costs.

• Future scalability: Reserve interfaces for smart energy systems for homes/commercial buildings (such as photovoltaic + energy storage).

7. Zero-live double-break design during shutdown (models with pumps)

Specific value:

• Safety upgrade: Completely cut off the power supply to prevent leakage and short circuit risks, in line with IEC 60335 electrical safety standards.

• Equipment protection: Avoid idling wear of water pumps and extend motor life.

• Regulatory compliance: Meet the safety isolation requirements of the European Machinery Directive (2006/42/EC) for live parts.

8. Support multiple connections and intelligent control (WiFi/OTA)

Specific value:

• Remote operation and maintenance: Update firmware through OTA to fix vulnerabilities or add new features (such as energy-saving mode) without on-site service.

• User stickiness: The APP provides water consumption statistics and fault self-check prompts to enhance the interactive experience.

• B-end customer value: Properties/hotels can access the centralized management platform through API to achieve equipment status monitoring and energy efficiency optimization.

Comprehensive market competitiveness analysis

• Technical barriers: high-precision temperature control + wide voltage compatibility + intelligent energy management, forming a differentiated advantage.

• Cost advantage: low standby power consumption + solar compatibility, long-term use cost is lower than traditional water heaters.

• Policy dividends: in line with the EU Eco-design Directive and RoHS environmental protection standards, enjoy subsidies or tax incentives.

• Full coverage of scenarios: from home to business, from conventional power grid to new energy systems, to meet diversified needs.

Summary

The solution not only solves the core pain points of users (safety, comfort, and power saving) through the trinity design of "precise temperature control + intelligent energy saving + full domain compatibility", but also opens up high-end markets (EU, commercial customers) and emerging tracks (renewable energy integration) for enterprises. Its technical highlights are directly converted into product premium capabilities, user loyalty and long-term market share, and it is a benchmark solution for the upgrade of the instant water heater industry.
